Laser cutter has a poor engraving quality/edge
Release Time：2016/05/04 troubleshooting Browsing Times：1230

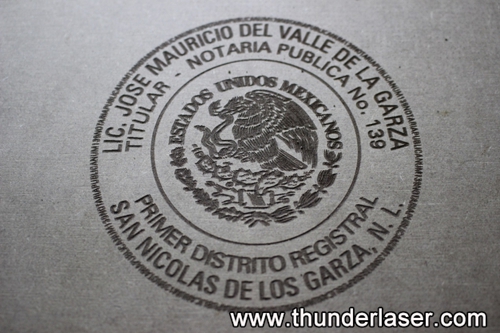

If your laser cutter’s engraving quality is very poor, it has the following possibilities:
A.Laser head is loose

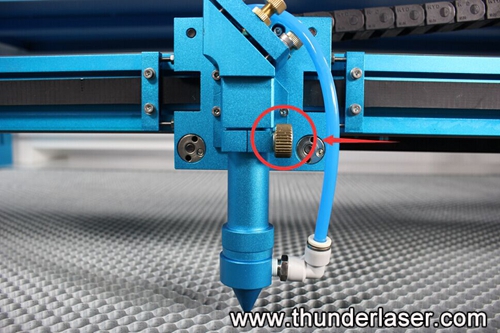

Please fasten the laser head as below
B.The focus lens or the reflective mirrors are loose

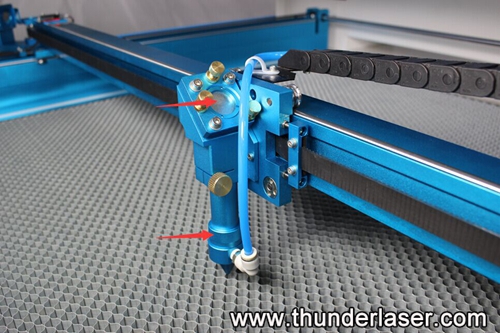

Please fasten the focus lens and the three reflective mirrors as below
C.The material is loose

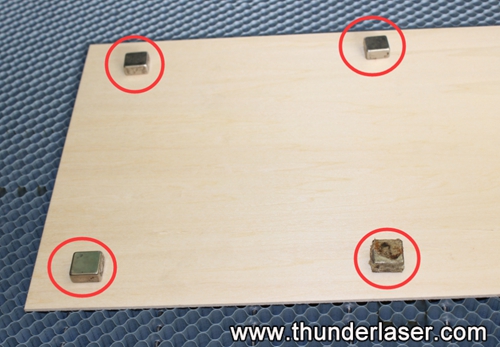

Use some magnet or heavy items to fasten the material
D.The machine shakes

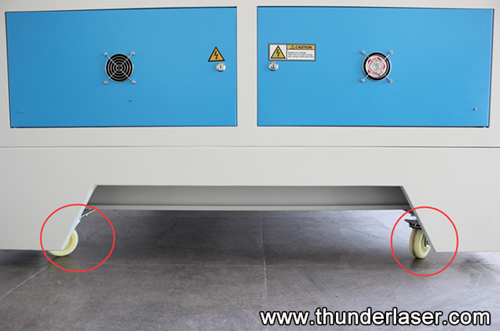

Please fasten the four wheels and the foot cup
E.X axis belt loose
Please do these two tests

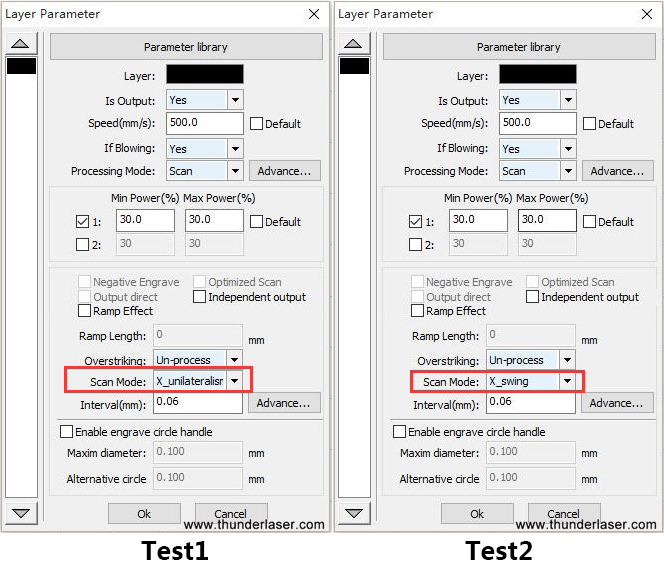

Test 1: engrave a 50x50mm square and set the scan mode as X_unilateralism
Test 2: engrave a 50x50mm square and set the scan mode as X_swing

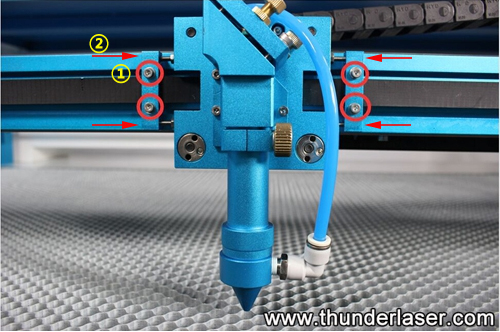

If the engraving edge of test 1 is smooth and test 2 is not, that means the belt is loose.Please fasten the belt as below(① fix the belt; ②adjust the tension of the belt;)
F.Please set the Scan Mode to X-unilaterism
