Laser cutter has a wrong cutting/engraving size

Release Time:2016/05/19 troubleshooting Browsing Times:2119

If this problem occurs, generally the pulse setting of the X/Y axis motors is wrong.

Please follow the below steps to solve the problem

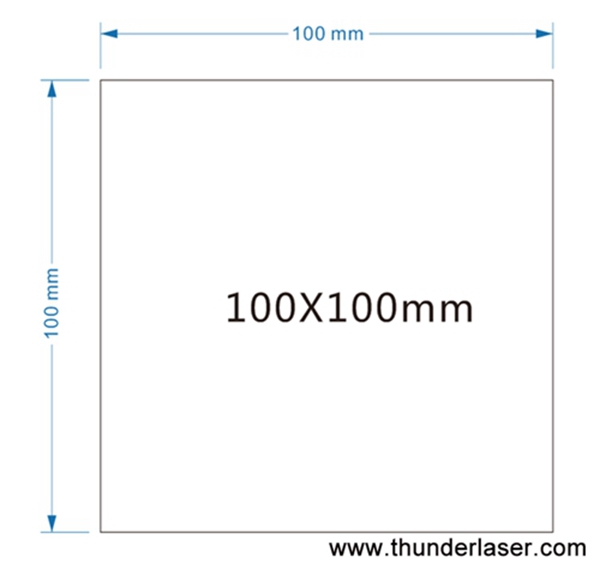

Please draw a 100x100mm square using the cut mode and send to your laser cutter and cut the square.

Laser cutter has a wrong size

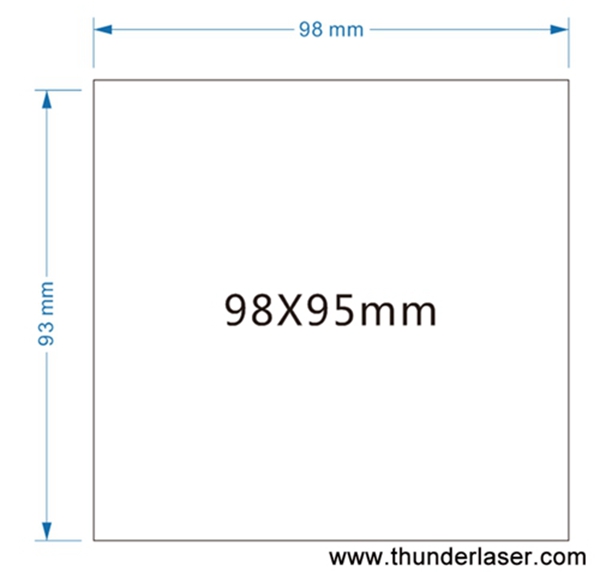

Let’s say the actual size of the square measured is 98x95mm

Laser cutter has a wrong size

How to fix this problem?

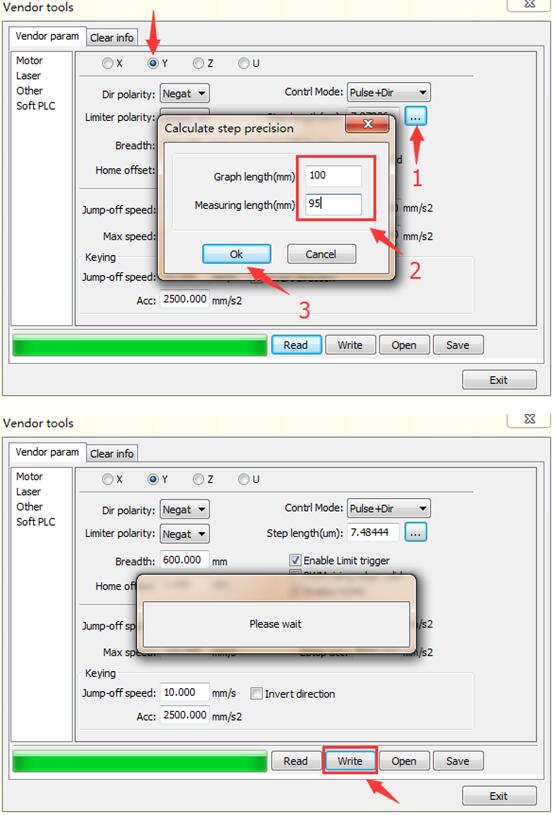

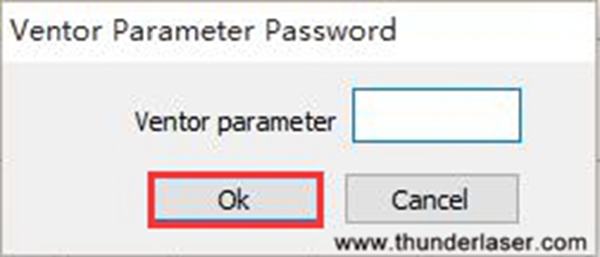

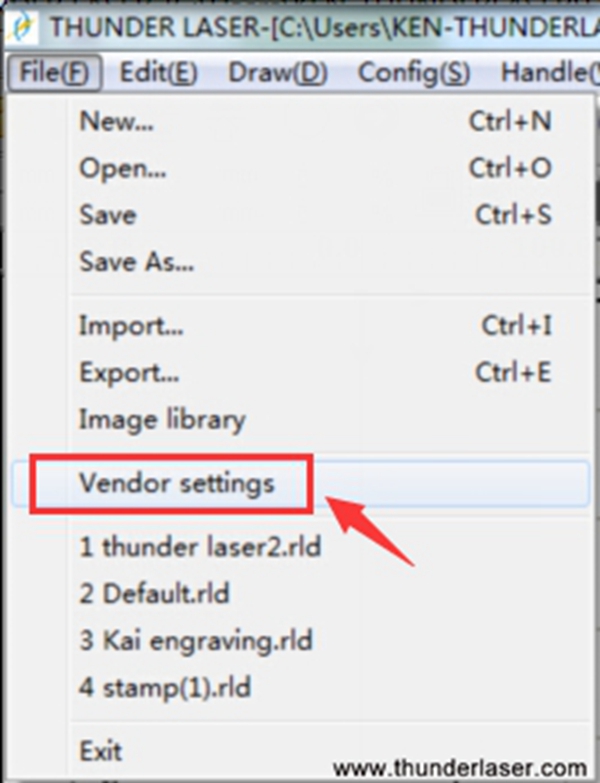

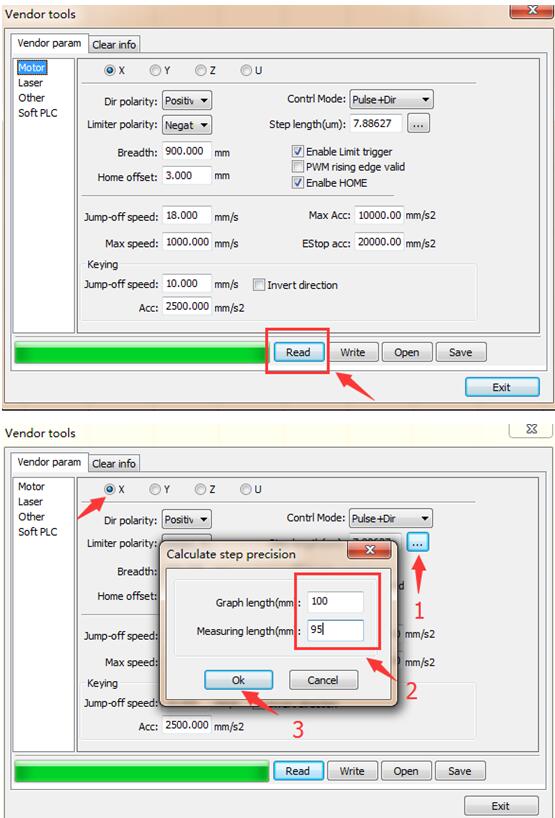

Please follow the pictures below to find the “Vender settings “and then input the password. Now select the X/Y axis and revise the step length, input the numbers as the below, and the software will count the correct number automatically, please click “save parameter “and then exit.

Laser cutter has a wrong size
Laser cutter has a wrong size
Laser cutter has a wrong size
Laser cutter has a wrong size

Now reset the laser cutter and draw a new 100x100mm square, if the size is correct, the problem is fixed.

If not, please repeat the step 1-3.

If you have any other questions, please contact with us directly by sending email to us tech @thunderlaser.com
