Why the red dot pointer not being able to come out from the laser head.

Release Time:2019/06/01 laser cutter machine Browsing Times:476

Here are the reasons:

  • ● The red dot pointer is off

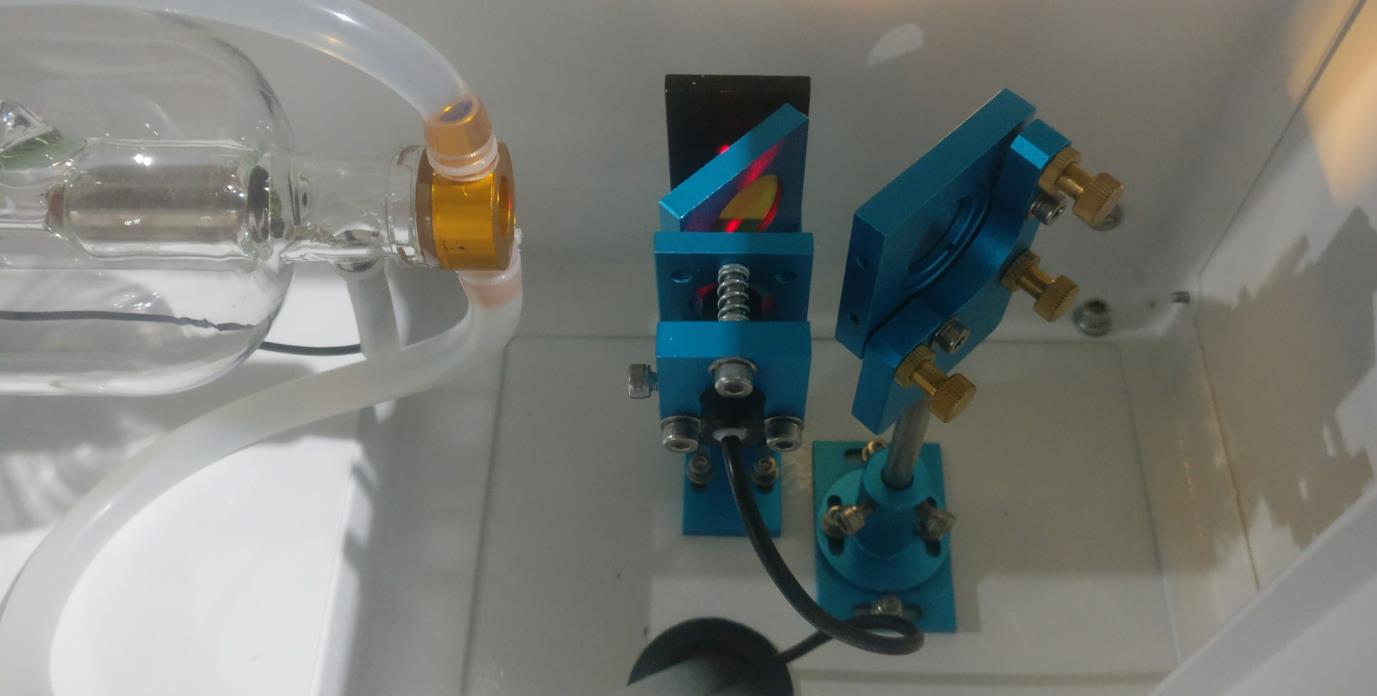

Locate on the Red Dot Pointer Mount in the rear of the machine, and check if the Red Dot Pointer is off, like below.
laser cutter

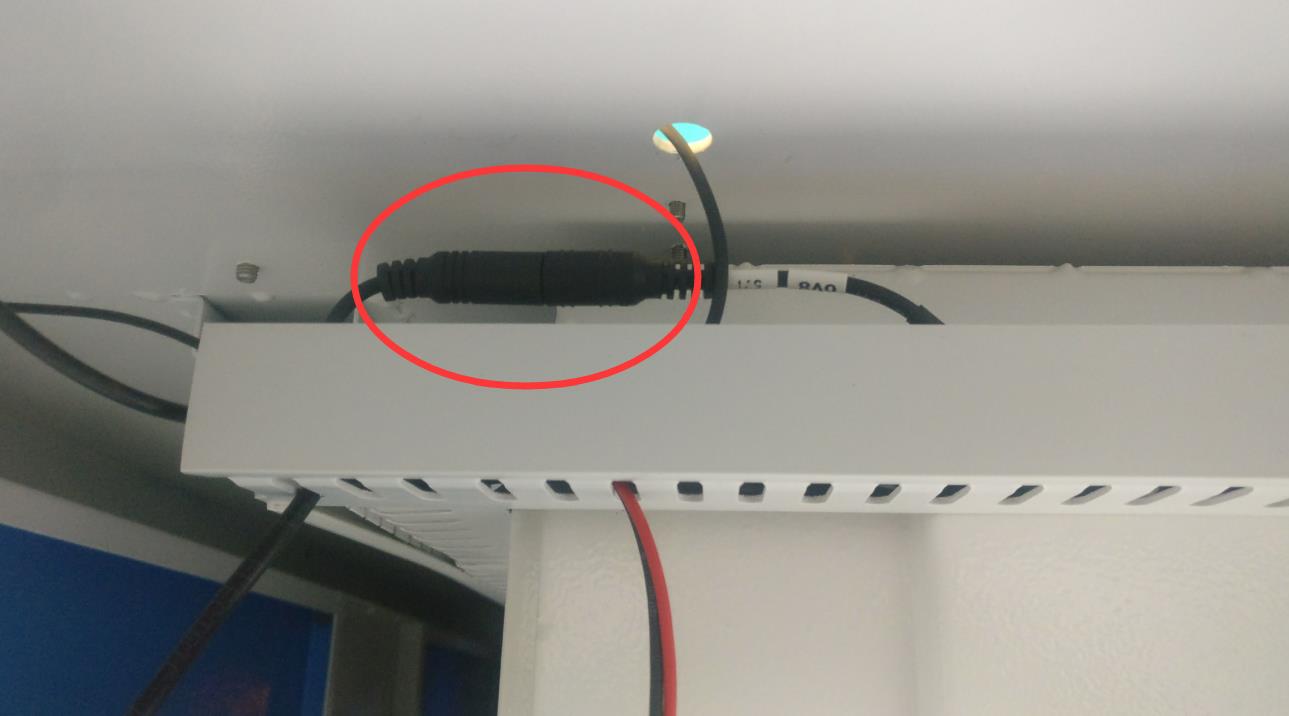

If yes, please open the lower left hand door panel, find the connector for the red dot and check if it’s connected well, like below.
laser cutter

  • ● The red dot pointer is not aligned

Procedure: Align the Red Dot pointer

1.Move the laser head on the middle of the working table.

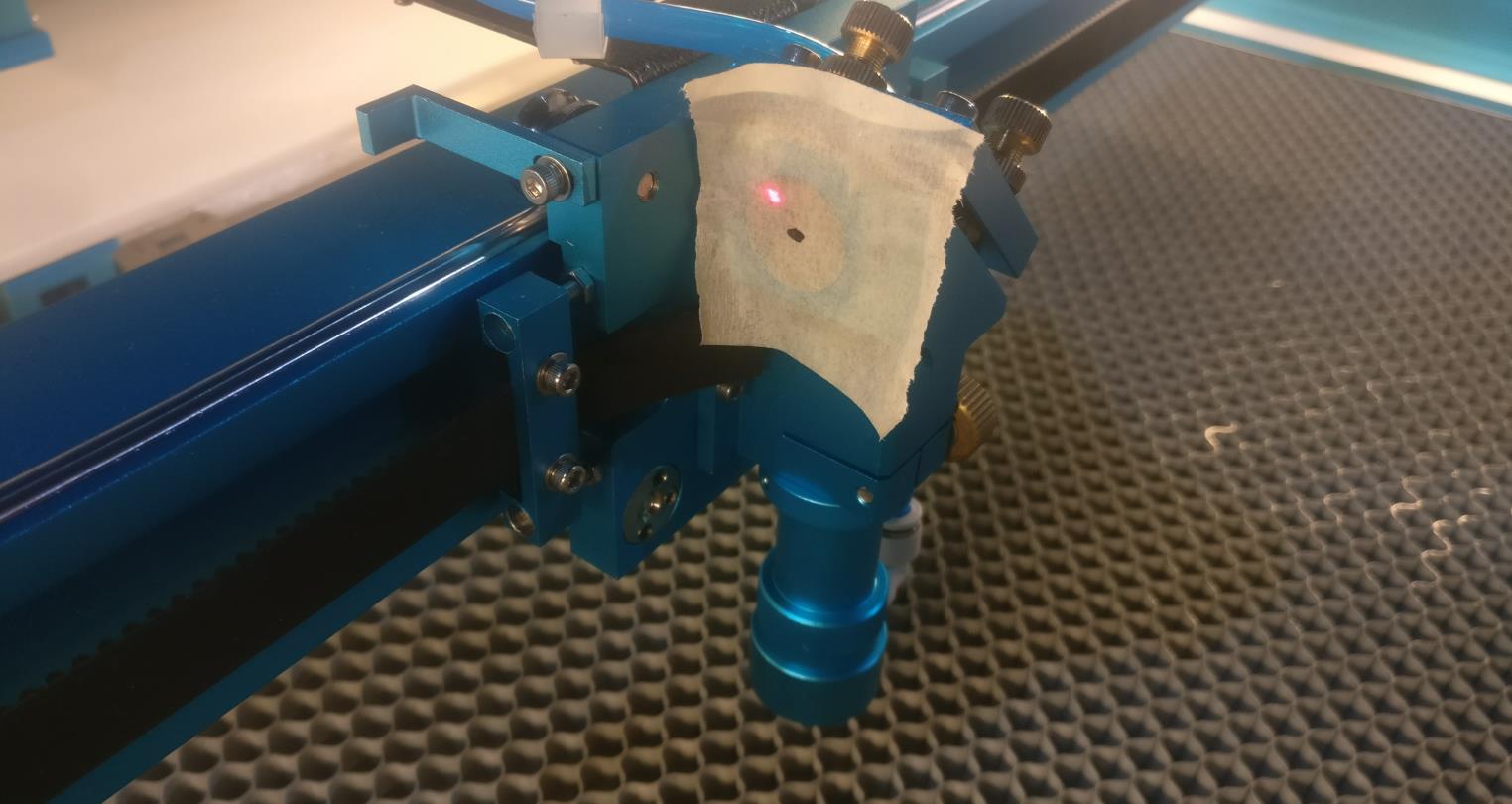

2.Place a square of masking tape over the left side of the third mirror carriage, and mark a dot on the center, like below.

laser cutter

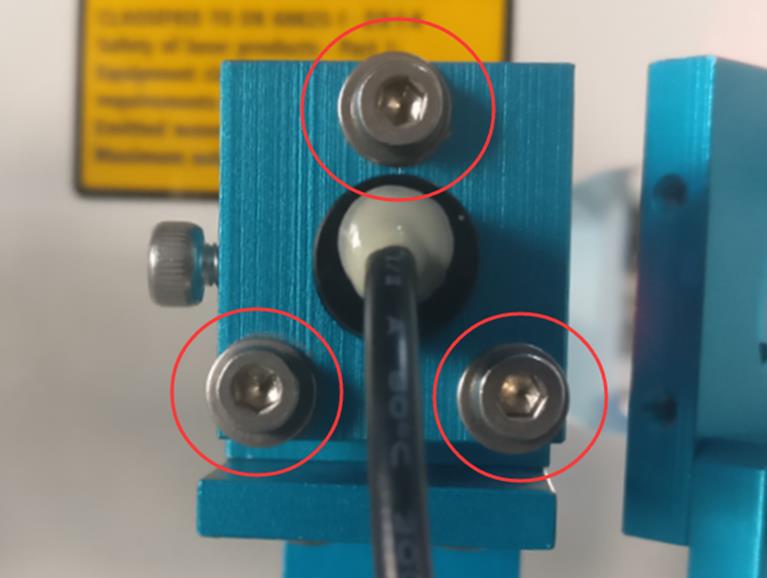

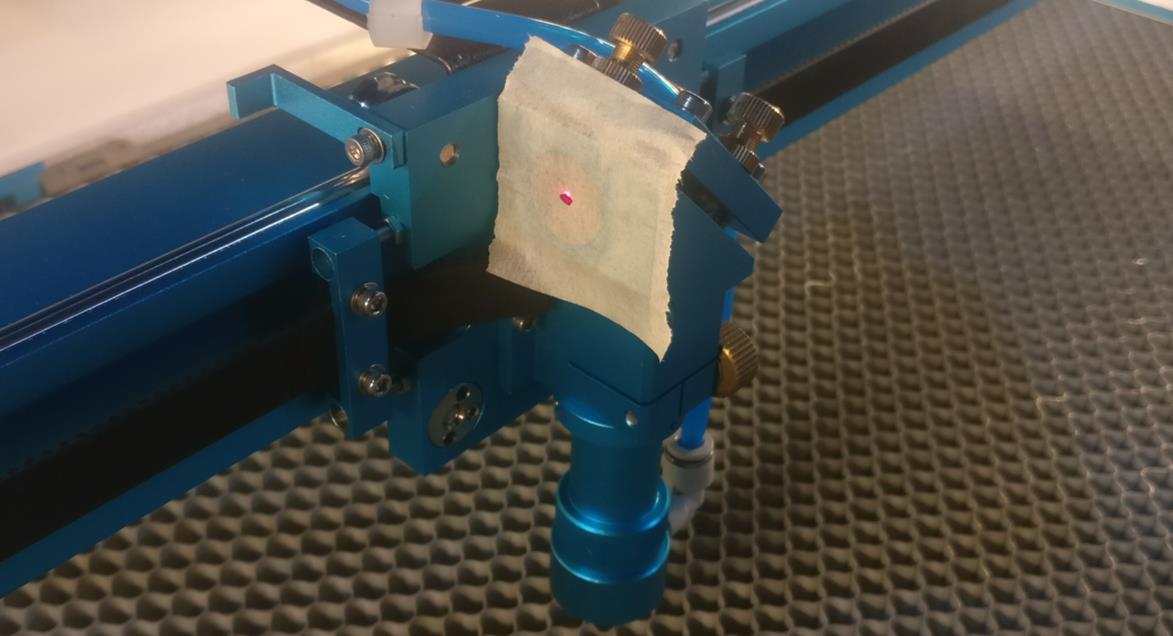

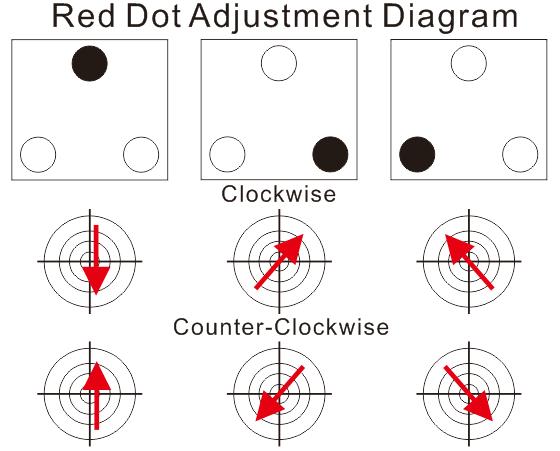

3.Use the three adjustment screws on the Red Dot Pointer Mount to move red dot to the mark dot on the tape, like below.

laser cutter    laser cutter  laser cutter
End.
