Alarm message of LCD panel—Frame/X/Y Slop over

Release Time:2018/11/11 laser cutter machine Browsing Times:527

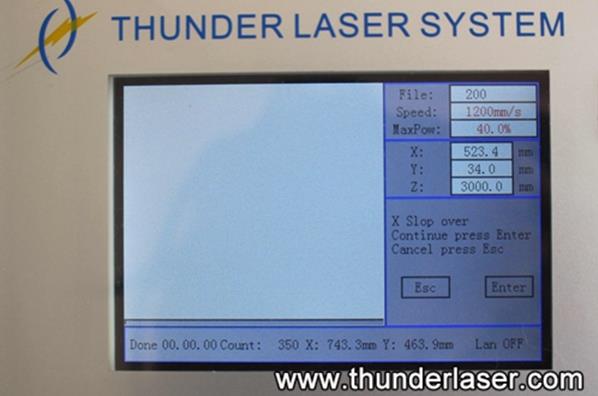

LCD panel shows the following information:
some trouble of laser engraver
Here are the reasons:

● The size of the graphic is larger than the working area of the machine

If your laser cutter’s working area is 600×400mm, but you want to cut a graphic which larger than 600×400mm, this warn appears. Since the laser is not able to work beyond its working.

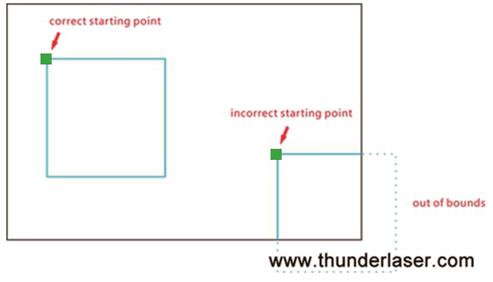

● Incorrect starting point

If you set an incorrect starting point, the graphic might be out of bounds. Please set a correct starting point to resolve this problem, like below.
some trouble of laser engraver


End.
