Mars – Laser System

Installed with the high speed servo motor systems, the Mars laser cutters are working at an unbelievable speed with excellent quality. It’s especially good for customers who need to mass produce their products. There’re different sizes of Mars laser cutters for your choice.

Machine Details

Standard Features

Technical Specifications

Laser System		MARS 90(Plus)	MARS 130(Plus)	MARS 160(Plus)
Laser Tube Wattage		80-100Watt	100-130Watt	100-150Watt
Work Area		900x600mm(35.4″ x 23.6″)	1300x900mm(51.2″x35.4″)	1600x1000mm(63.0″x39.4″)
Max Part Size (WxLxH)	Front door closed	1000x730x250mm(39.4″ x 28.7″ x9.8″)	1400x1030x250mm(55.1″ x 40.6″ x9.8″)	1700x1130x250mm(66.9″ x 44.5″ x9.8″)
	Pass-through door	1000x∞x20mm(39.4″ x ∞” x0.8″)	1400x∞x20mm(55.1″ x ∞” x0.8″)	1700x∞x20mm(66.9″ x ∞” x0.8″)
Table Size		1000x730mm(39.4″ x 28.7″)	1400x1030mm(55.1″ x40.6″)	1700x1130mm(66.9″ x 44.5″)
Z Axis Height		230mm(9.1″)	230mm(9.1″)	230mm(9.1″)
Dimensions(WxDxH)		1500x1105x1040mm(59.1″ x 43.5″ x40.9″)	1900x1405x1040mm(74.8″ x 55.3″ x40.9″)	2200x1505x1040mm(86.6″ x 59.3″ x40.9″)
Net Weight		230kgs(507lbs)	310kgs(683lbs)	350kgs(772lbs)
Laser Type		Sealed Co2 Glass Laser Tube
Cooling		Water Cooled
Motion Control System		High-Speed Hybrid servo motor
Maximum Speed		1000mm/S(39.4 IPS)
Speed and Power Control (engraving depth)		Computer or manually controlled speed and power from 0-100%. Vector color mapping sets speed and power settings using RGB color mapping.
Operating Modes		Optimized raster, vector, and combined mode
Resolution(DPI)		User controlled from 100 to 500DPI(standard laser head), up to 1000 DPI(HR head)
Computer Interface		Ethernet and USB Connection
Compatible Operating Systems		Windows XP/2000/Vista/7/8/10
Buffer Memory		128MB Standard
Display Panel		3.5″ LCD panel showing current file, total working time, laser power, speed etc.
Electrical Requirements		110 to 240 volts, 50 or 60 Hz, single phase
Ventilation System		Integral exhaust fan.There is 1 output port, 5.7″ (145 mm) in diameter in the rear of the case.
Standard Features		Red dot pointer, Auto focus, Motorized table, Pass-through Door, Air Assist, Water pump ,Exhaust fan, HoneyComb Table, 2″ (50.8 mm) Focus Lens, Easily adjustable Home position, LCD Display,3D Engraving ,”No water” protection, Emergency stop, Maintenance mode, Open cover protection,Hybrid servo motor
Optional Features
High Resolution Head		Increase the resolution up to 1000DPI
Rotary Axis		Use to engrave on round items
Water Chiller		Improve the cooling of laser tube

Machine Size

Optional Items

Water Chiller
When the laser tube is working, it will produce a large amount of heat.Since the water chiller has the refrigerating capacity and can adjust the temperature intelligently to keep the temperature within a certain range, there by to ensure the stability of laser working.

Rotary Axis
Rotary engraving equipment was used to extending THUNDERLASER system application, as a optional component, It can be used for cutting and engraving round items…

Heat Alarm Detector
A thermal detector is designed for areas where a fire will be more flame and heat than smoke; areas such as laser cutter and engraver, kitchens, garages and workshops. The small thermal heat detector will also have a 10 year, long life battery…

HR laser head
We named Hight-Resolution head as HR head for short,it’s made by special structure for focusing the laser bean into a much smaller dot,thus we can get more tiny laser dots in a unit area,and the engraving result will be more elaborate…

4″ laser head
4″ laser head owns a longer focal distance than 2″ standard head, thus for cutting thick material, it makes the cutting edge more smooth and straight…

Air compressor
The high pressure and low noise air compressor offered by Thunder Laser co2 laser engraving machine includes two parts: the high pressure and low noise air compressor and the water separator…

Materials

If your material is not in the below list, our Applications Team would be happy to assist you to test it.

Materials	Engrave	Cut
Wood	√	√
Acrylic	√	√
Delrin	√	√
Cloth	√	√
Leather	√	√
Mat Board	√	√
Melamine	√	√
Paper	√	√
Mylar	√	√
Pressboard	√	√
Rubber	√	√
Wood Veneer	√	√
Fiberglass	√	√
Plastic	√	√
Cork	√	√
Corian	√	√
Twill	√	√
Anodized Aluminum	√	X
Painted Metals	√	X
Tile	√	X
Glass	√	X
Coated Metals	√	X
Ceramics	√	X
Marble	√	X
Stainless Steel	*	X
Brass	*	X
Titanium	*	X
Bare Metal	*	X

* means the laser cannot engrave directly, you will need the help of the “thermark spray”, you can visit www.thermark.com for more information.

Video

Thunder Laser Video

laser cutting 3D – a mobile phone holder
WATCH NOW

▷ laser cutting 3D – a mobile phone holder
CHOOSE YOUR LASER

How to choose a reliable laser cutter
WATCH NOW

▷ How to choose a reliable laser cutter
Thunder Laser Video

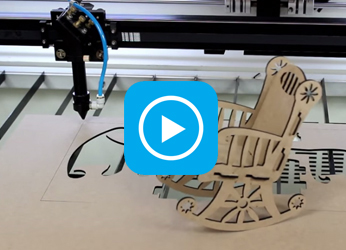

laser cutting MDF – rocking chair
WATCH NOW

▷ laser cutting MDF – rocking chair
Thunder Laser Video

laser cutting wood – dinosaur model cutting
WATCH NOW

▷ laser cutting wood – dinosaur model cutting
Thunder Laser Video

laser wood cutting – a rocking horse
WATCH NOW

▷ laser wood cutting – a rocking horse
Thunder Laser Video

laser cutting paper – Chinese Paper Cut
WATCH NOW

▷ laser cutting paper – Chinese Paper Cut

FAQ

1.Do I have to record all the cutting/engraving parameters for different materials in a paper?

No need. We’ve added a parameter library in the software, once you find out what settings is best for a certain material;you can record it in the parameter library. Next time you cut the same material, you just need to read it from the list.

2.Does your laser run from a laptop or Desktop PC?

Both ok, as long as your operating system is window 2000 or XP or vista or win 7.

3.Does your laser run in Windows XP?

Our laser runs on window 2000/ XP/ vista/ wins 7 both 32bits and 64bits system.But it does not run on Mac OS.

4.What software is suggested to design my jobs?

CorelDraw and AutoCAD are suggested. You can design all your artworks in these two software and then send to the RDWorks software to set the parameters easily.

5.What files is the software compatible with?

JPG, PNG, BMP, PLT, DST, DXF, CDR, AI, DSB, GIF, MNG, TIF, TGA,PCX, JP2, JPC, PGX, RAS, PNM, SKA, RAW

6.Will it engrave from a jpeg image?

Yes.

7.Can I take a picture and engrave the image on an object without any hassles?

Yes, you can take a photo by using a camera and then load the photo to the software directly and engrave it.

8.Does machine comes ready to work?

the laser machine is ready to work, the exhaust fan and the air pump and the water pump are included. (But when you using a big power laser tube, it is suggested to buy a water chiller for cooling the laser tube)

https://www.thunderlaser.co.nz/how-to-use-your-laser-machine/how-to-setup-your-mini60-laser-system.html

https://www.thunderlaser.co.nz/how-to-use-your-laser-machine/how-to-setup-your-nova-laser-cutter.html

9.How much time do I need to spend on learning how to run the laser machine?

As long as you know how to design jobs in graphic software, it just takes a few hours for you to become a master of laser machine. You just need to do some tests to know what speed and power is good for different materials. Since we’ve provided some of the parameter library, it will save you more time.You can watch the guiding videos from our website to learn how to use the machine in advance too.

https://www.thunderlaser.co.nz/video/what-laser-cutter-can-create.html

https://www.thunderlaser.co.nz/video/how-to-use-your-laser-machine.html

https://www.thunderlaser.co.nz/video/how-to-use-your-laser-software.html

10.How to send a job to the machine?

Please watch this video directly to learn the detail

https://www.thunderlaser.co.nz/video/how-to-use-your-laser-software.html

11.Do I need separate laser systems for engraving and cutting?

No, our laser machine can do both cutting and engraving very well.You just need one machine for both kinds of jobs.
